Keep Your Dana 44 TTB Stub Shaft Where It Belongs
Installing a locker or limited-slip differential in a Dana 44 TTB can create a problem that isn’t immediately obvious: the factory C-clip used to retain the passenger-side stub shaft can no longer be installed. Without the C-clip, there is nothing positively retaining the stub shaft inside the differential, allowing it to move or potentially pull out as the suspension cycles and articulates.
We’ve seen other solutions use a valve spring to maintain pressure against the stub shaft. While that may work in some situations, we wanted a positive mechanical solution designed for trucks that actually see off-road use.

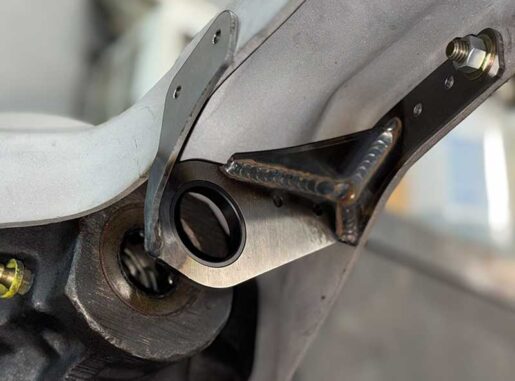

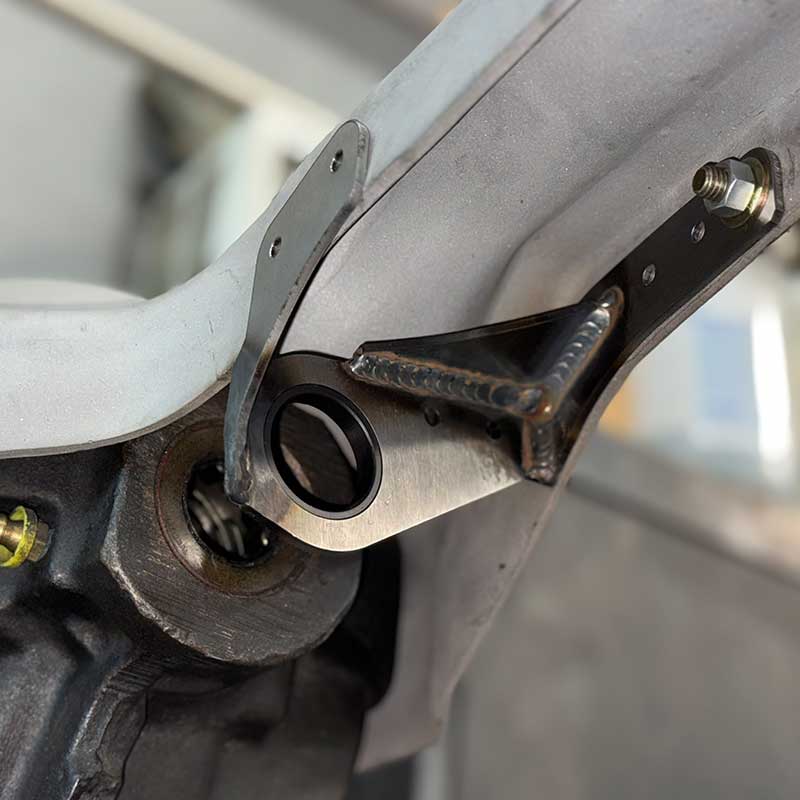

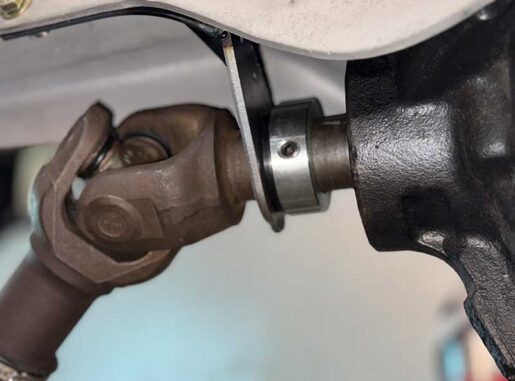

Our Dana 44 TTB Stub Shaft C-Clip Eliminator uses a laser-cut and CNC-bent 1/8″ chromoly steel bracket with a machined Delrin bushing for the stub shaft to ride against.

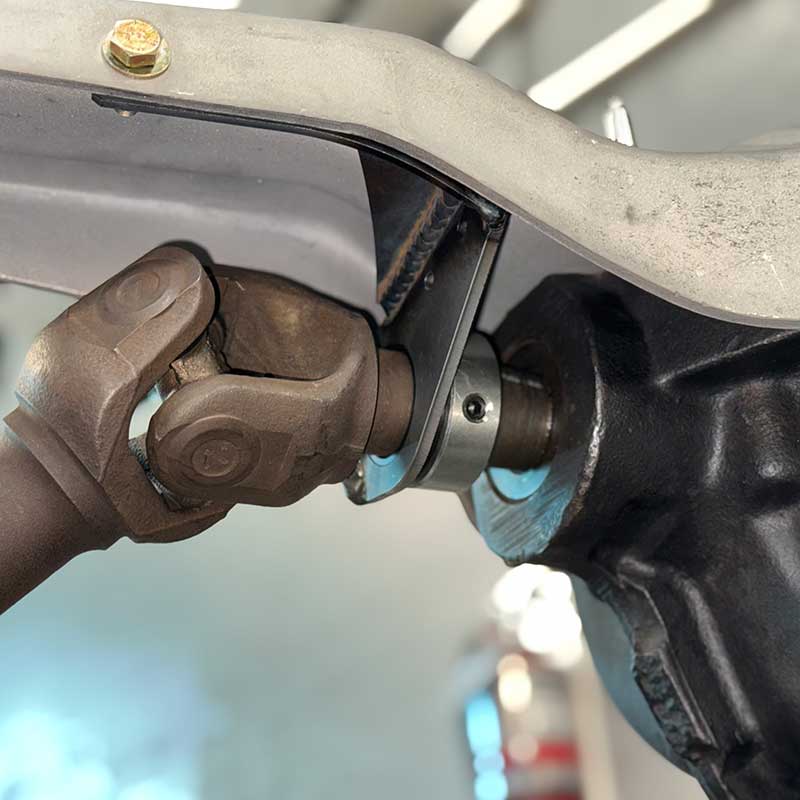

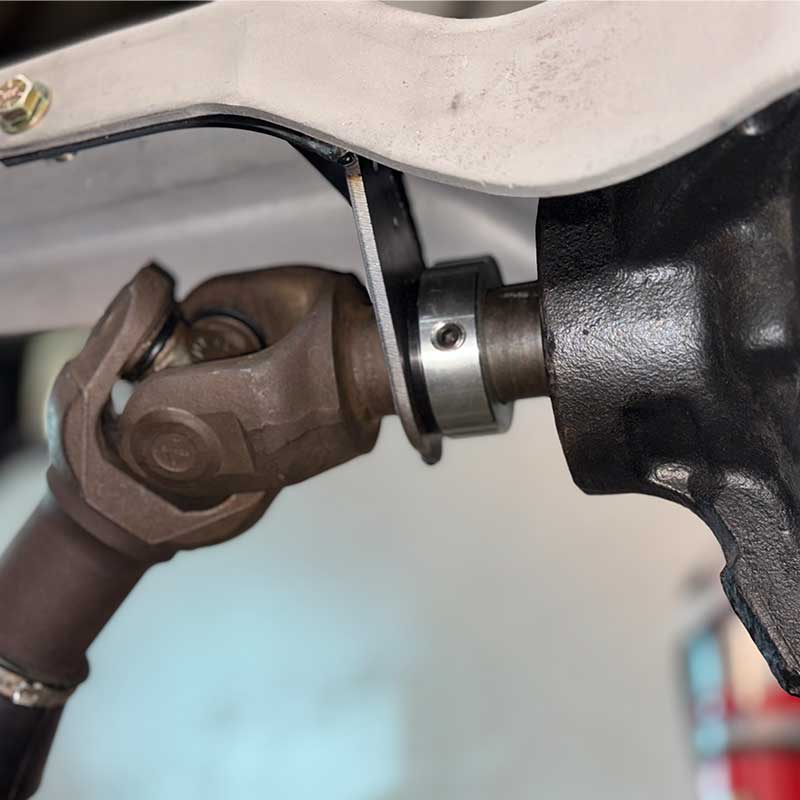

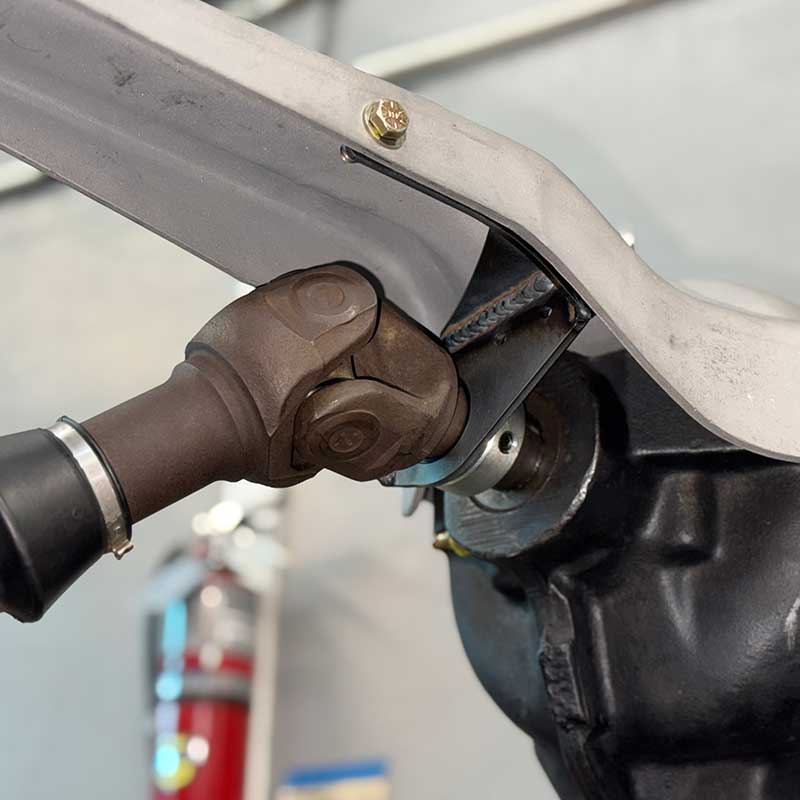

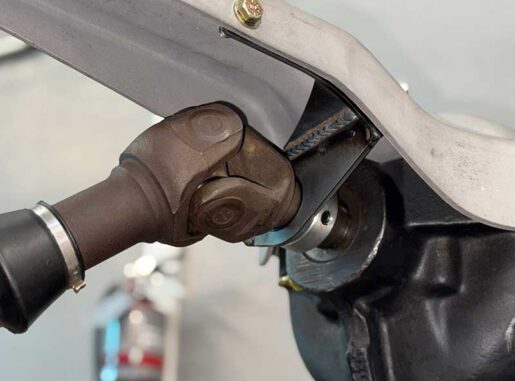

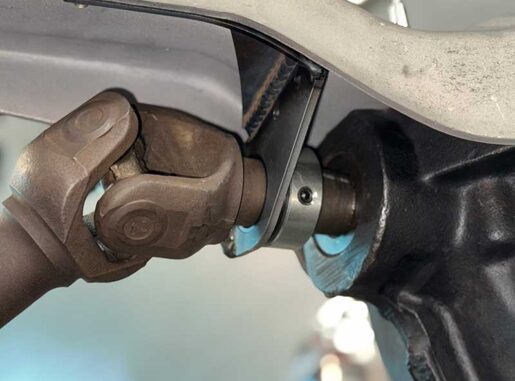

A CNC-machined billet aluminum collet clamps around the stub shaft using a set screw. The collet creates a positive stop against the Delrin bushing and bracket, preventing the stub shaft from pulling out of the differential as the suspension cycles.
The bracket utilizes an existing factory mounting location for a straightforward installation and can be either bolted or welded into position, depending on your build.
It’s a simple solution to a problem created when upgrading the Dana 44 TTB differential with a locker or limited slip.
Made in the USA.
Key Features
- Designed specifically for the Dana 44 TTB
- Provides positive stub shaft retention when the factory C-clip cannot be used
- Designed for locker and limited-slip differential applications
- Prevents the stub shaft from pulling out as the suspension cycles
- 1/8″ chromoly steel bracket
- Laser cut and CNC bent
- Machined Delrin stub shaft bushing
- CNC-machined billet aluminum retaining collet
- Set-screw collet clamps directly to the stub shaft
- Uses an existing factory mounting location
- Can be bolted or welded into position
- Made in the USA

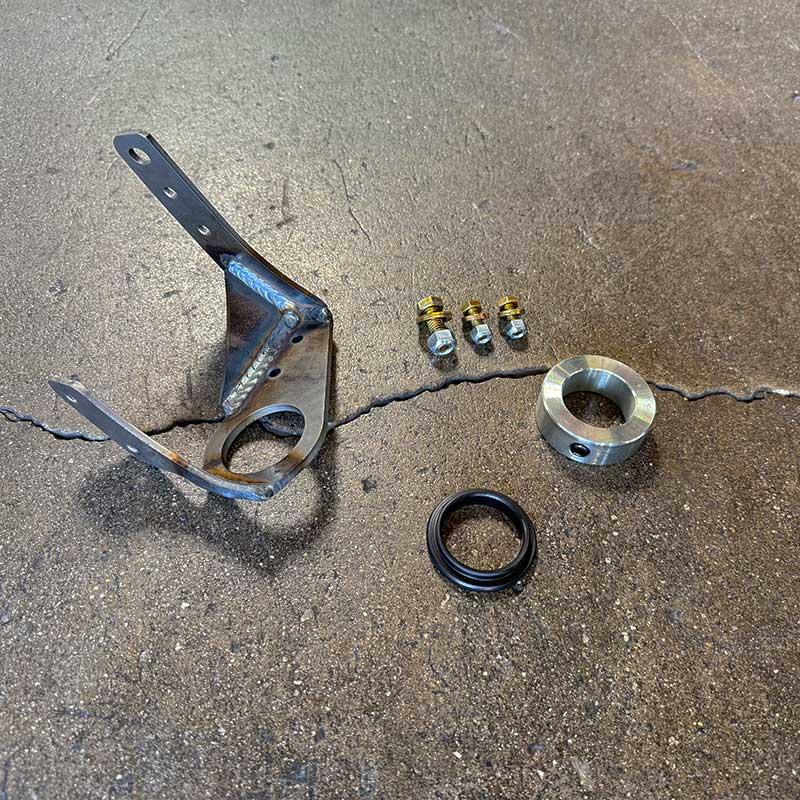

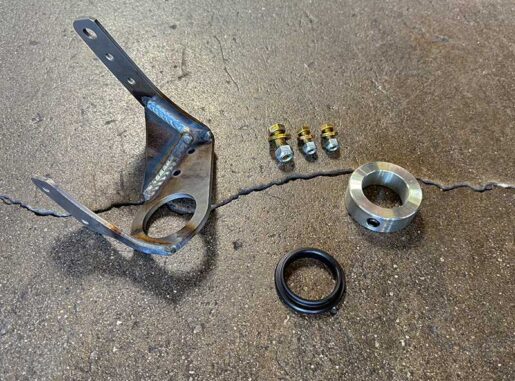

Kit Includes
- (1) 1/8″ Chromoly C-Clip Eliminator Bracket
- (1) Machined Delrin Bushing
- (1) Billet Aluminum Stub Shaft Collet
- (1) Set Screw
Fitment
Dana 44 TTB Only
Common applications include:
1980–1996 Ford Bronco
1980–1996 Ford F-150
Important: Does not fit the Dana 50 TTB.
Designed for applications where installation of a locker or limited-slip differential prevents use of the factory stub shaft C-clip.
RCV Axle Compatibility: Not currently verified.
