Description
The 83-90 Ford Bronco II Explorer Long-Travel Suspension Kit Stage 5 is a high performance long-travel Front Suspension Kit for Rangers, Explorers, and Bronco IIs. This kit converts the TTB suspension to use a 12″ Coil-over performance shock. This Kit is built for chase and prerunning down in Baja!
The 19 inches of front suspension travel soaks up the whoops, and delivers an amazing ride even through the roughest terrain. This Suspension kit is built for heavy off-road use, no matter if it’s on hard or soft packed dirt.
The wider beams will increase your track width for more wheel travel and stability. They allow your wheels to travel on a greater arc, just like our Extended Radius Arms. Pick between 4.5″ or 6” extended Dana 35 Beams. Each beam receives full plating along with a front gussets, and the pivot receive 1″ uniball cups welded into them. The Cut N’ Turned beams allow for proper camber. We weld the remaining TTB welds that the factory does not complete.
Our 1 1/4″ Extended Radius Arms will bring back the correct caster and allows the wheel to travel on a greater arc.
The suspension system requires a 12″ coil over shock to keep your factory brake booster. 17″ of 4wd wheel travel is possible with 4.5″ over stock beams and 19″ 4wd of wheel travel is possible with 6″ over beams.
This kit comes with custom 4340 Chromoly Dutchman axles for reliable performance.
We do offer a Dana 35 TTB modification allowing you to run a Dana 44 spindle, snouts, and hub conversion. Call for shock options.
Specs
- Front suspension travel approx.: 17-19″
- Front suspension lift approx.: 4 in
- Recommended tire size: 35 in
- Fiberglass required: Yes
- 4130 Chromoly 1″ Uniball Cups welded on beam pivots

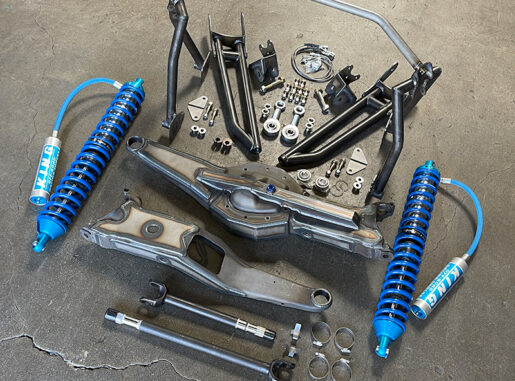

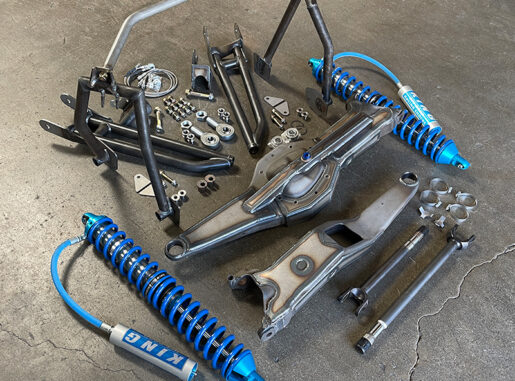

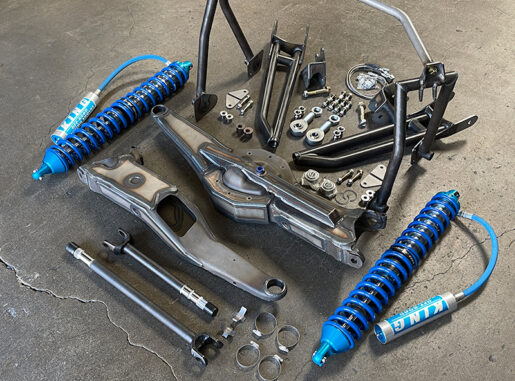

Dana 35 Prerunner Kit Includes
- 4.5″ or 6″ Extended Beams
- 4340 Extended Axles
- Cut N’ Turned TTB Beam Work (core charges apply – read more)
- 12″ stroke 2.5 King coil over shocks with remote reservoirs
- Shock hoops
- 1 1/4″ Heimed Extended Radius Arms
- Radius Arm Pivot Boxes
- 17-4 Stainless Steel Misalignments
- Grade 8 Hardware
- FK 1″ uniballs
- FK 1 1/4″ Heim Joints
- Grade 8 Hardware
- Limit Straps
- Front Extended Brake Lines
- Alignment Cams
Options
- Modify Dana 35 TTBs to run a Dana 44 spindle, snouts and hubs.
