Description
Get the Steering Travel Your Toyota Suspension Needs
Increasing suspension travel is only useful if the steering system can move through that same range without becoming the limiting factor.
Our Toyota Heim & Clevis Steering Upgrade replaces the factory inner and outer tie-rod joint arrangement with a high-misalignment heim-joint steering system designed for Solo Motorsports Mid-Travel and XLT suspension systems.
The clevis design allows the inner steering joint to articulate through increased suspension droop, making this upgrade a requirement for achieving maximum suspension travel with our Toyota XLT kits.

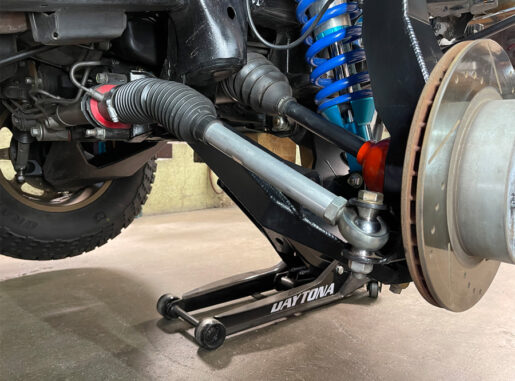

Built for Mid-Travel and Long-Travel Suspension
At the steering rack, custom-machined bolts secure 17-4 stainless steel clevises to the factory rack and pinion. FK 3/4″ inner heim joints connect the clevises to the tie rods using 1/2″ Grade 8 hardware.
At the spindle, FK 7/8″ outer heim joints use 5/8″ Grade 8 hardware to create a strong, serviceable steering connection capable of working through increased suspension travel.
Tie-rod lengths are available for stock-width, 2″-over, 3.5″-over, and 4.5″-over suspension systems, allowing the steering to be configured around your specific Solo Motorsports suspension setup.
Stock Toyota spindles require our Double-Shear Steering Upgrade for the 5/8″ outer steering bolt.
Available for select Tacoma, 4Runner, Tundra, Sequoia, FJ Cruiser, and Lexus GX applications.
Not compatible with All-Wheel-Drive applications.
Steering Width Options
Stock Length
Designed for Toyota Mid-Travel suspension systems.
2″ Over
Designed for systems that are 2″ wider than stock.
3.5″ Over
Designed for systems that are 3.5″ wider than stock.
4.5″ Over
Designed for systems that are 4.5″ wider than stock. (1st Gen Tun/Seq and 1st Gen Tac/3rd Gen 4R Using a BTF 4.5″ over kit will receive Stainless Steel tie rods)
Kit Includes
- Machined Tie Rods
- 17-4 Stainless Steel Inner Clevises
- 17-4 Stainless Steel Misalignment Spacers
- Machined Rack-and-Pinion Bolts
- FK 7/8″ Outer Heim Joints
- Outer Heim Jam Nuts
- 5/8″ Grade 8 Outer Hardware
- FK 3/4″ Inner Heim Joints
- Inner Heim Jam Nuts
- 1/2″ Grade 8 Inner Hardware
Tie Rod Material
Most configurations use tie rods machined from solid 17-4 stainless steel.
The following applications use aluminum tie rods instead of stainless steel:
- 1st Gen Toyota Tacoma / 3rd Gen Toyota 4Runner
- 1st Gen Toyota Tundra / Sequoia
Stock Spindle Applications

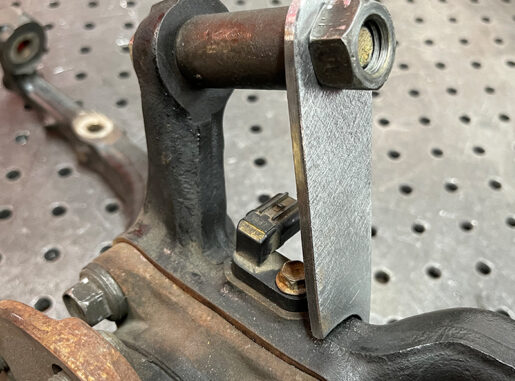

When using a factory Toyota spindle, the outer steering connection must be converted to double shear for the 5/8″ steering bolt.
The optional Stock Spindle Double-Shear Upgrade does not fit 1st Gen Toyota applications.
Important
This heim steering system is NOT compatible with All-Wheel-Drive vehicles.
