Toyota Lower Ball Joint Conversion to 1″ Uniball with Steering

$1,799.99

Clear selection
SKU: N/A Categories: , , Tags: , , ,

Description

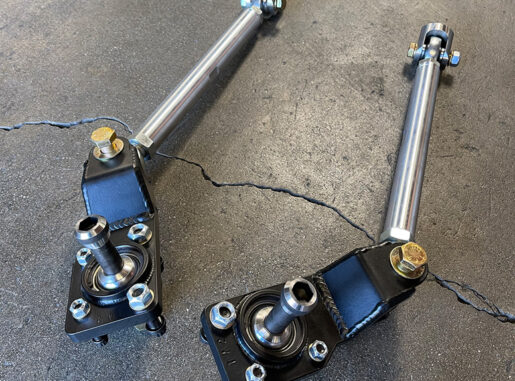

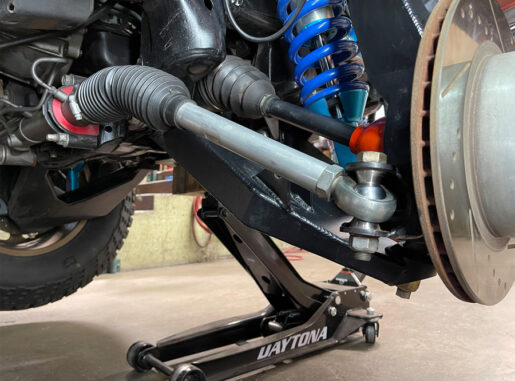

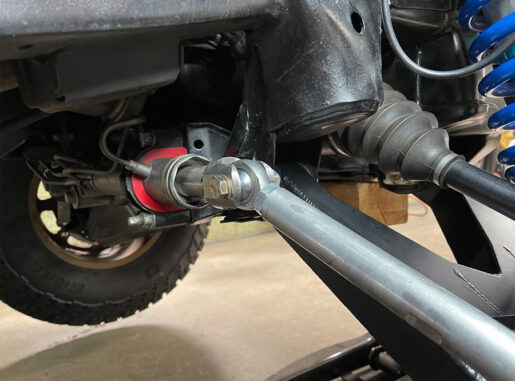

The Toyota Lower Ball Joint Conversion to 1″ Uniball with Steering replaces the factory Toyota lower ball joints and tie rods with our 1″ Lower Uniball Conversion. 17-4 Stainless Machined Clevises and 3/4″ Inner Heims bolted the Rack and Pinion. Billet Steering Connectors and 7/8″ Outer Heims connect to the  Lower Uniball Conversion. We now offer the steering and the uniball conversion as a combined package. All this together will strengthen the major weak points.

Requires

Application

  • Toyota Tacoma 1996-2004 2WD or 4WD
  • Toyota Tundra 2000-2006 2WD or 4WD

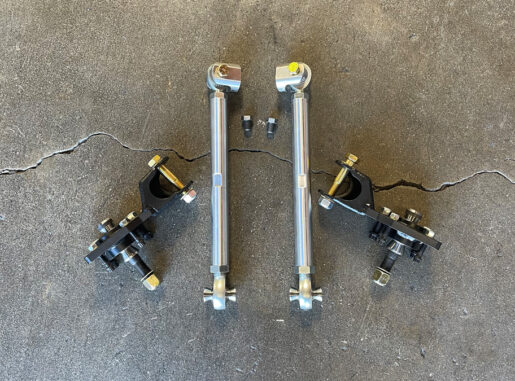

LBJ Conversion Includes

  • Lower Uniball Conversion (pair)
  • FK Bearing 1″ Uniballs
  • 17-4 Stainless Machined Clevises
  • 17-4 Stainless Misalignment Spacers
  • Billet Steering Connectors
  • FK Bearing 3/4 Heims
  • FK Bearing 7/8 Heims
  • All Grade 8 Hardware

Additional information

Weight 24 lbs
Dimensions 18 × 10 × 5 in
Select Kit

2WD Kit, 4WD Kit
Select Vehicle

Tacoma 96-04, 4Runner 96-02, Tundra 00-06, Sequoia 00-07
Suspension Application

Mid-Travel (Stock Width), Long Travel (3.5" Over), Long travel (4.5" Over)

No additional boxes are available for this product.

Torque Specs

  • Lower Uniball Conv. to Lower Control Arm (3/4" Stainless Steel Bolt): 120 ft-lbs Anti-Seize all Surfaces.
  • Upper Control Arm to Spindle (5/8" x 5" Grade 8 Bolt) (Short Misalign. spacer on top, Tall Misalign. Spacer on bottom): 100 ft-lbs Anit-Seize Threads and Shank of Bolt, as well as Anit-Seize Stainless Misalign Spacers.
  • Uniball Conv. to Spindle (2WD): 1/2" Bolts 50 ft-lbs, 3/8" Bolts 30 ft-lbs Anit-Seize Threads
  • Uniball Conv. to Spindle (4WD): 1/2" Bolts 50 ft-lbs use Red Loctite, 3/8" Bolts 30 ft-lbs Anit-Seize Threads
  • Clevis Bolt to Rack and Pinion: 50 ft-lbs with Red Loctite.
  • Heim to Clevis Bolt (Double Head Allen Bolt): 25 ft-lbs Anti-Seize the Shank, and Blue Loctite on threads.
  • Steering Tie Rod to Spindle (5/8" x 4" Grade 8 Bolt): 100 ft-lbs Anit-Seize Threads and Shank of bolt. Also Anti-Seize the Stainless Steel Misalignment Spacers going into the Heim Joint.
  • Upper Control Arm Cross Bolt (long bolt through the coil bucket): 85 ft-lbs use Blue Loctite on Threads and Anti-Seize the Shank of the bolt.

Alignment Specs

  • 0 Degrees of Camber
  • 1/8" Toe in
  • 4-6 Degrees of Caster (Long Travel Applications)
  • 3-4 Degrees of Caster (Mid Travel Applications)

This product fits the following vehicles:

Make Model Year
Make Model Year
Toyota Tacoma 1996-2004 (1st Gen)
Toyota Tundra 2000-2006 (1st Gen)
