Description

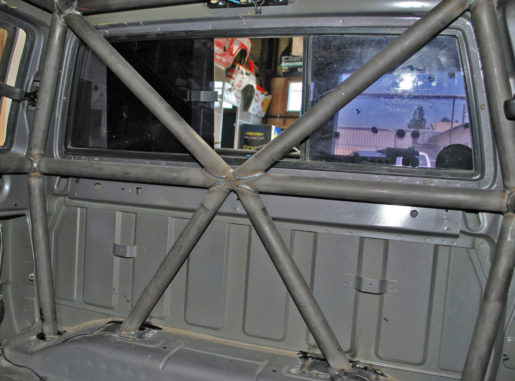

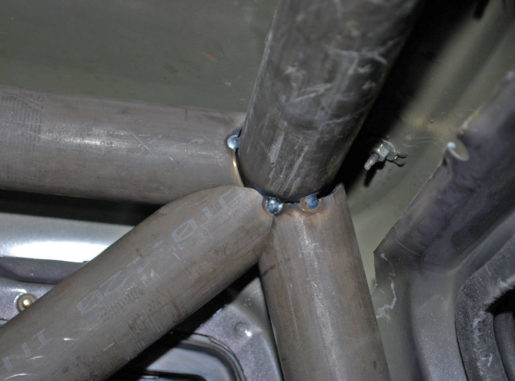

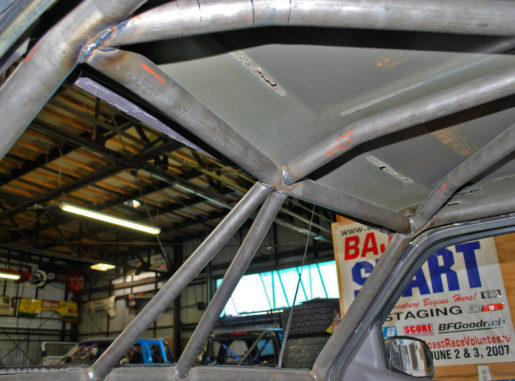

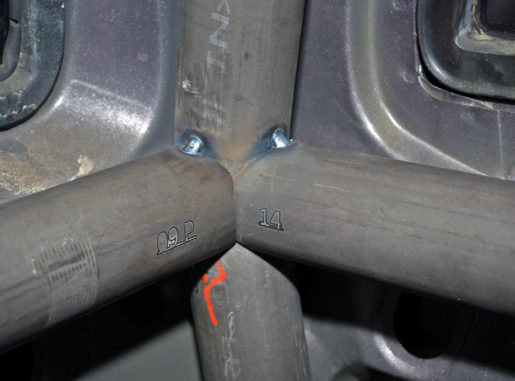

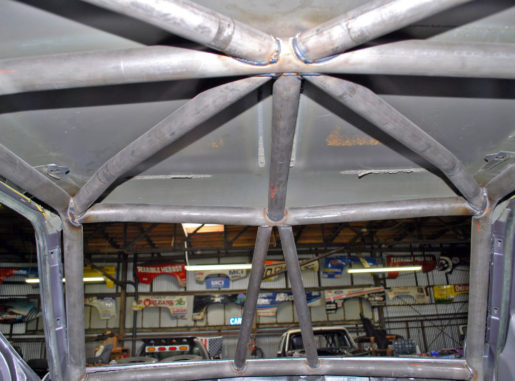

Our W-I-Y 8-Point Race-Legal Roll Cage for all Ford Ranger extra cabs. The roll cage’s main section and the pontoons under the floor connecting to the frame consists of 2″x.120 wall DOM. All roof webbing is 1.75″x.120 wall DOM. Windshield “A” Bars and gussets are 1.25″x.120 wall DOM. Pontoons under the floor use existing frame holes which make locating fool-proof. Laser marked tubes with a part numbers for easy assembly. All pieces are CNC-bent and laser-notched. The top of the 2″ main tubes stub out of the upper rear roof section and allowing a connection point to your existing bed cage or back-half.

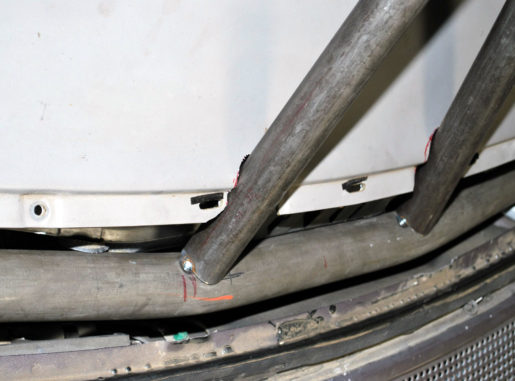

Also included with the kit are CNC-bent pieces connecting the A-pillars through the firewall to the front of the frame. This will serve as your engine cage starting point. The engine cage tubes are CNC bent to clear the windshield wiper arm. Will allow the truck to remain street legal and have full wiper functionality.
All of the pictured tubes are provided. To assist you with installation, we provided you with a Dropbox link that includes many photos. They illustrate your starting point all the way to the final tube fitment with estimated measurements.
This W-I-Y kit will work with 1986 and to the present Ford Rangers with extra cab. The 1998 and new Ford Rangers need fabrication on the rear cab frame. The W-I-Y kit will work with 1986 to 1992 “Rain Gutter” Ford Ranger extra cabs.
We take the guesswork and wasted tubing out of building your interior cab cage!!
Race-Legal Roll Cage Specs
- CNC Bent 2″ Main DOM Tubing
- CNC Notched
- Lower Pontoons Locate to Frame with Factory Holes
- All Roof Lacing and Gussets
- Cage Drawing supplied to aid assembly
- EASM File available to aid assembly (Downloading Solidworks E-Drawings Required)
- Made in the U.S.A.
Applications
- 1986-1992 Ranger Extended Cab
- 1993-1997 Ranger Extended Cab
- 1998-2015 Ranger Extended Cab
All Rangers require rear frame body mounts to be removed
Installed by a certified or professional welder is required. Solo Motorsports is not responsible for improper installation.
*Installation in-house at Solo Motorsports starting at $5200 – please contact us for more info*
