Ford Knuckles Double-Shear Steering / Ford 1980-1996

$70.00$750.00

$250 Core Charge is included in the price for the Pre-Welded Option (The $250 will be refunded back, when we receive the stock knuckles).

Clear selection

Description

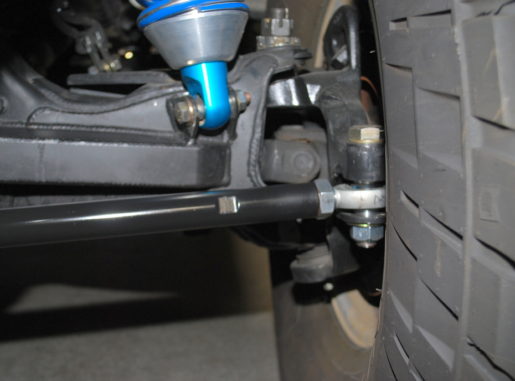

Ford Knuckles Double-Shear Steering for 7/8″ outer heim joints. Used to work with Swing Steer set ups. Ford Bronco and F-150 1980-1996.

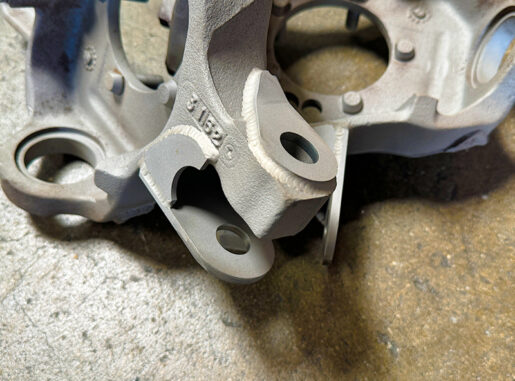

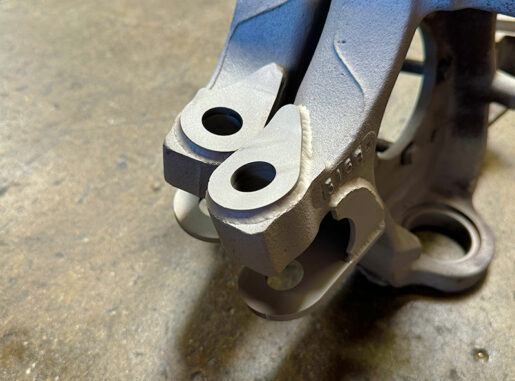

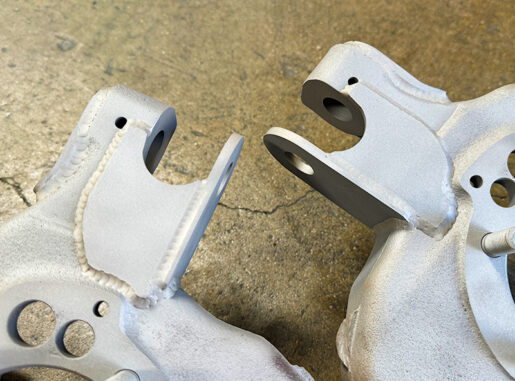

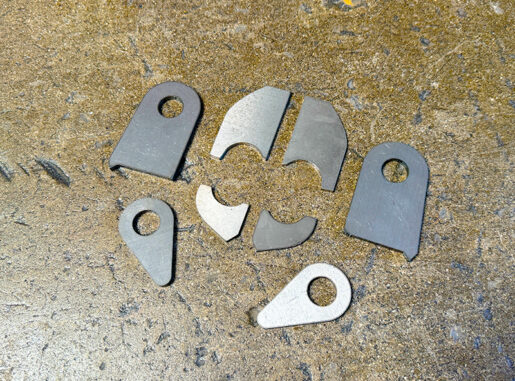

When upgrading the Ford Bronco or F-150 factory steering to a Swing Steer set up. The Knuckle needs to be double sheared to have a second capture point for the 7/8th heim joint.  The Ford Knuckles are milled out to accept a 5/8 grade 8 bolt used to mount the Swing Steer. Then the knuckles are pre-heated to TIG welded the 4130 Chromoly tabs.

Pricing

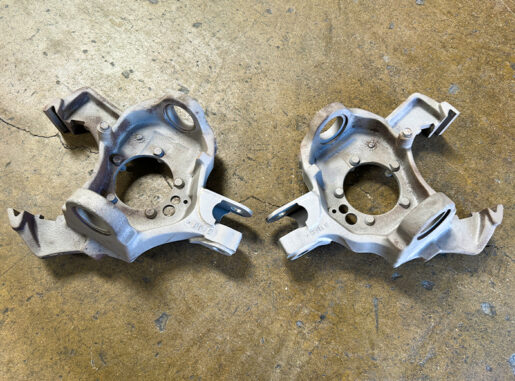

Labor/ Modification:  $500 for Ford Knuckles Double-Shear Steering. Comes Sand blasted with TIG welded Double-Shear Gussets.

Core Charge: $250 Core Charge is included in the price (The $250 will be refunded back, when we receive the stock knuckles).

Please call for more info.

Applications

  • 1980-1996 Ford Bronco
  • 1980-1996 Ford F-150

Additional information

Weight 777 lbs
Dimensions 777 × 777 × 777 in
Select Option

Double-Shear Tabs W-I-Y, Pre-Welded Knuckles With Double-Shear Tabs

Select Snout

5 Bolt Snout, 6 Bolt Snout

This product fits the following vehicles:

Make Model Year
Make Model Year
Ford Bronco 1980-1986
Ford Bronco 1987-1991
Ford Bronco 1992-1996
Ford F-150 1980-1991
Ford F-150 1992-1996
